PALLADIO COLLECTION

PC-662

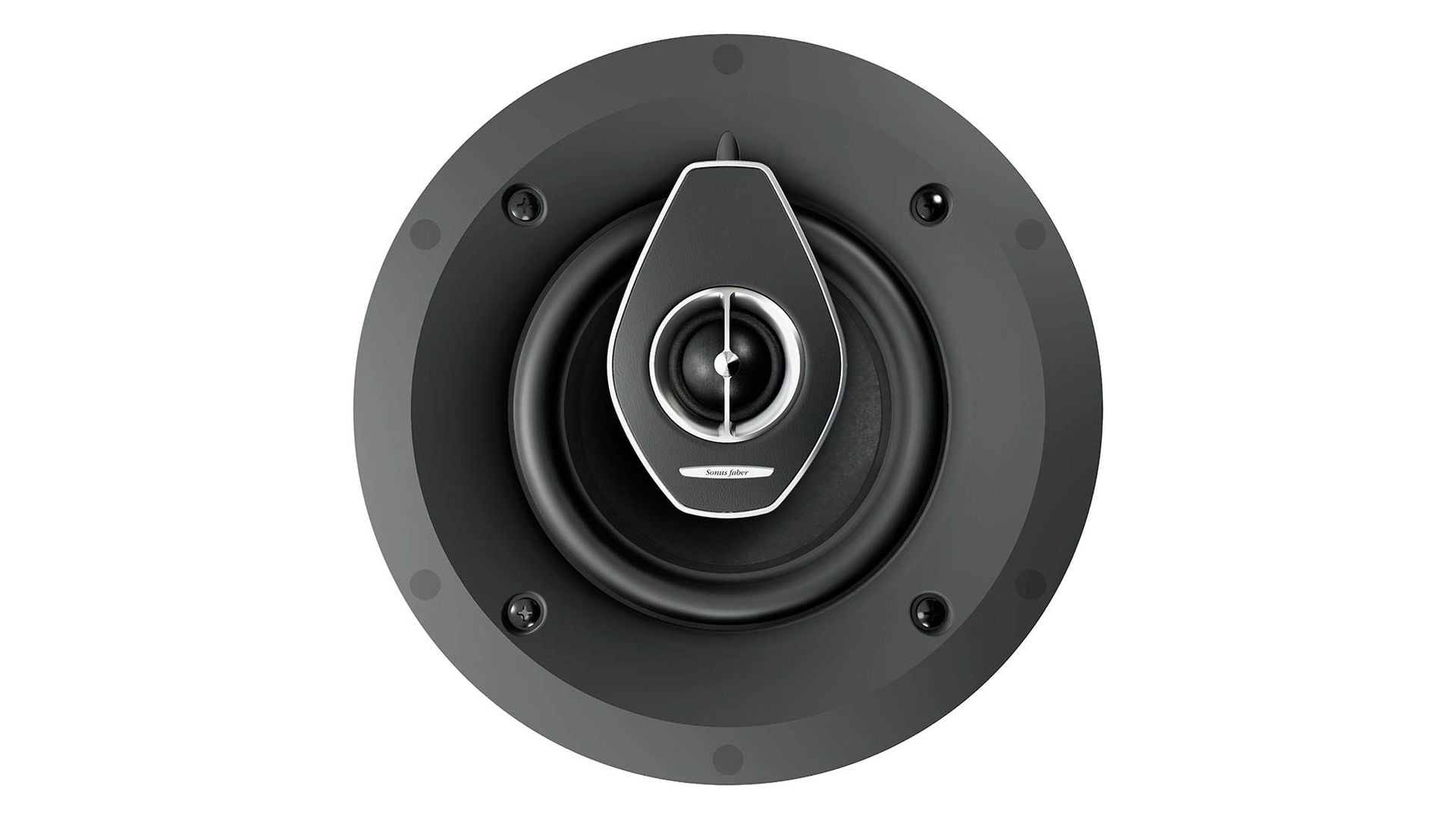

2 way in-ceiling speaker with sealed box enclosure.

Easy to install and customize

All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible.

Without Grille

With Rounded Grille

With Squared Grille

CLASSIC DESIGN AND VERSATILITY

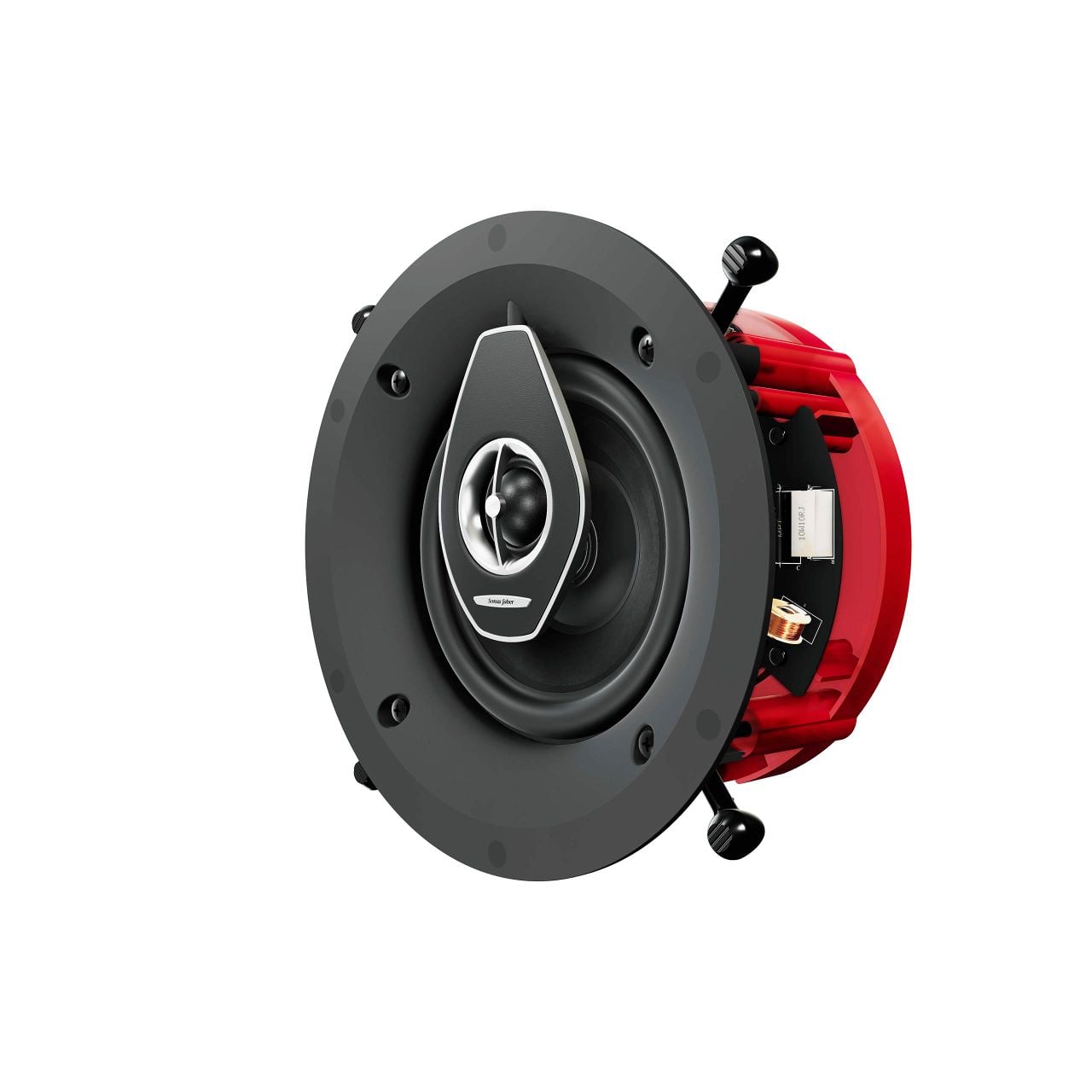

With leather embellishment around the tweeter, the PC-662 parallels design elements of the Olympica Nova Collection. Magnetic edgeless round metal grilles (also available in square) can be easily painted to blend in with the listening environment. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. For new construction, an optional pre-mount kit is provided.

2-Way

In-ceiling system

1.1 inch

Tweeter D.A.D. driver

6.5 inch

Woofer

THE NEW CUSTOM INSTALLATION

The Palladio Collection transcends the confines of traditional listening spaces, paving the way for a new era of auditory immersion. The Collection combines versatility and aesthetics, enhancing any home while filling each space with Natural Sound.

Tech Specs

System

2 way in-ceiling system.

Infinite baffle

Loudspeakers

Tweeter DAD driver: 29 mm / 1.1’’

Midwoofer: 165 mm / 6.5’’

Recommended power amplifier

40 – 200W

Undistorted signal.

Product dimensions (HxWxD)

Frame outer: Ø 234 mm / 9.2‘’

Cut out: Ø 208 mm / 8.19‘’

Depth behind surface: 115 mm / 4.5‘’

Protrusion: 10 mm / 0.40‘’

Dimensions with packaging (HxWxD)

28.0 x 33.0 x 33.0 cm

11.0 x 13.0 x 13.0 in

Packaging weight

5.68 Kg

12.5 lb

PALLADIO COLLECTION

Custom Installation In-Ceiling and In-Wall Speakers

The Palladio Collection pays homage to Italian Renaissance architecture with its focus on balance and symmetry, delivering exceptional sound quality in a discreet, elegant design.

Palladio Level 6 Set
