ARENA COLLECTION
4-way In-wall speaker.
AN ELEGANT COMPANION
The Arena 30 features an optional square magnetic grille, designed to protect the speaker’s components without compromising audio quality.
With Grille
Without Grille

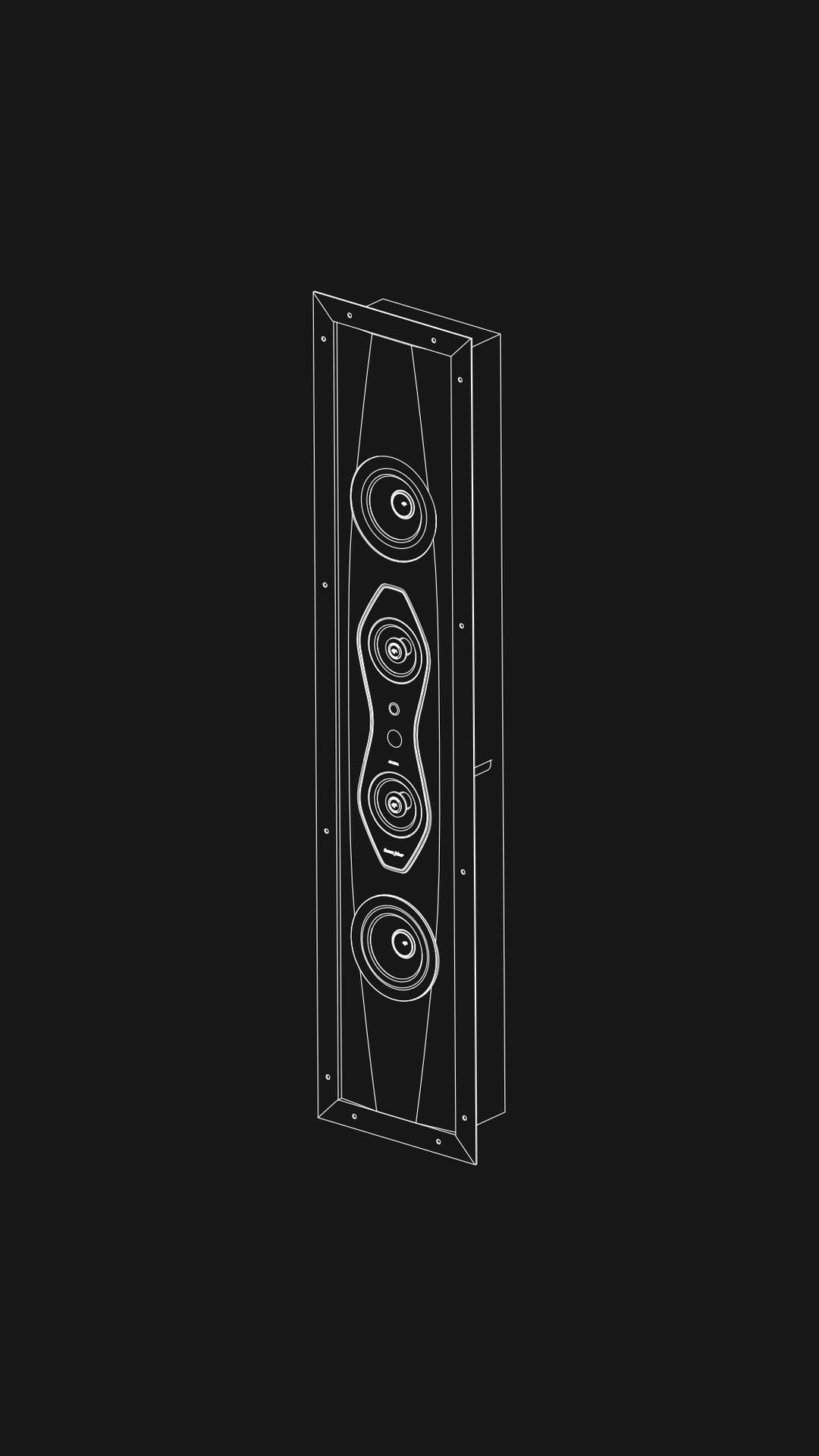

Arena 30 is the flagship model for Sonus faber Arena collection. Arena 30's innovative design delivers exquisite audio to the finest home cinema systems.
The Arena 30 uses 2 x 8” Low Frequency Transducers, 2 x 6.25" Mid/High Frequency Transducers, a 1.5 mm Dome Tweeter and a 0.75" Super Tweeter. Both the tweeter and super tweeter are equipped with dedicated wave guides to support and enhance the out-of-axis dispersion of the high frequency, delivering pristine detail to every seat in the room.
Using two different drivers to reproduce the same bandwidth increases the emission power, reaching 600W. The natural materials used in the woofers and mid-woofer guarantee punchy and precise bass balanced with Sonus faber's Natural Sound signature.
4-Way
System
x2 8"
Low Frequency Transducers
x2 6.25”
Mid/High Frequency Transducers
0.75"
Super Tweeter
4 way, closed box, In-wall
Stw: Ø 19 mm
Tw: Ø 38 mm
Md: Ø 2x159 mm
W: Ø 2x203 mm
200, 2000, 10000 Hz
40 Hz - 32200 Hz
94 dB SPL (2.83V/1 m)
4 Ohm
122 dB @ 1 meter
max 600 W
2 connectors binding post

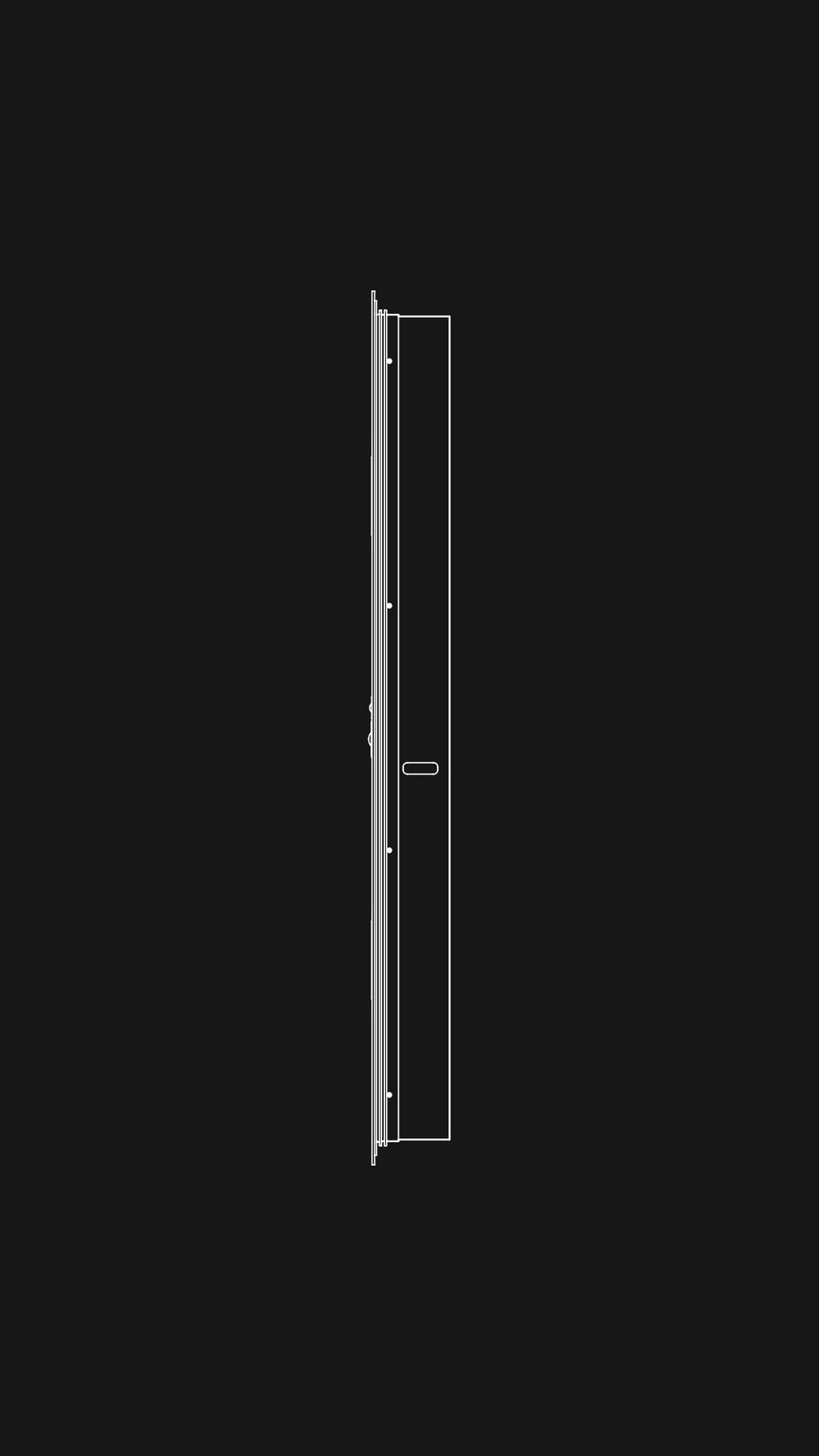

Mounting Depth: 162 mm
6,4 in
1774 x 321 x 167 mm / unit
69.8 x 12.6 x 6.6 / unit
2000 x 635 x 500 mm / unit
78.7 x 25 x 19.7 in / unit
59 Kg / unit
130.1 lb / unit
73 Kg / unit
160.9 lb / unit
Squared shape
Leather
Aluminum
ARENA COLLECTION

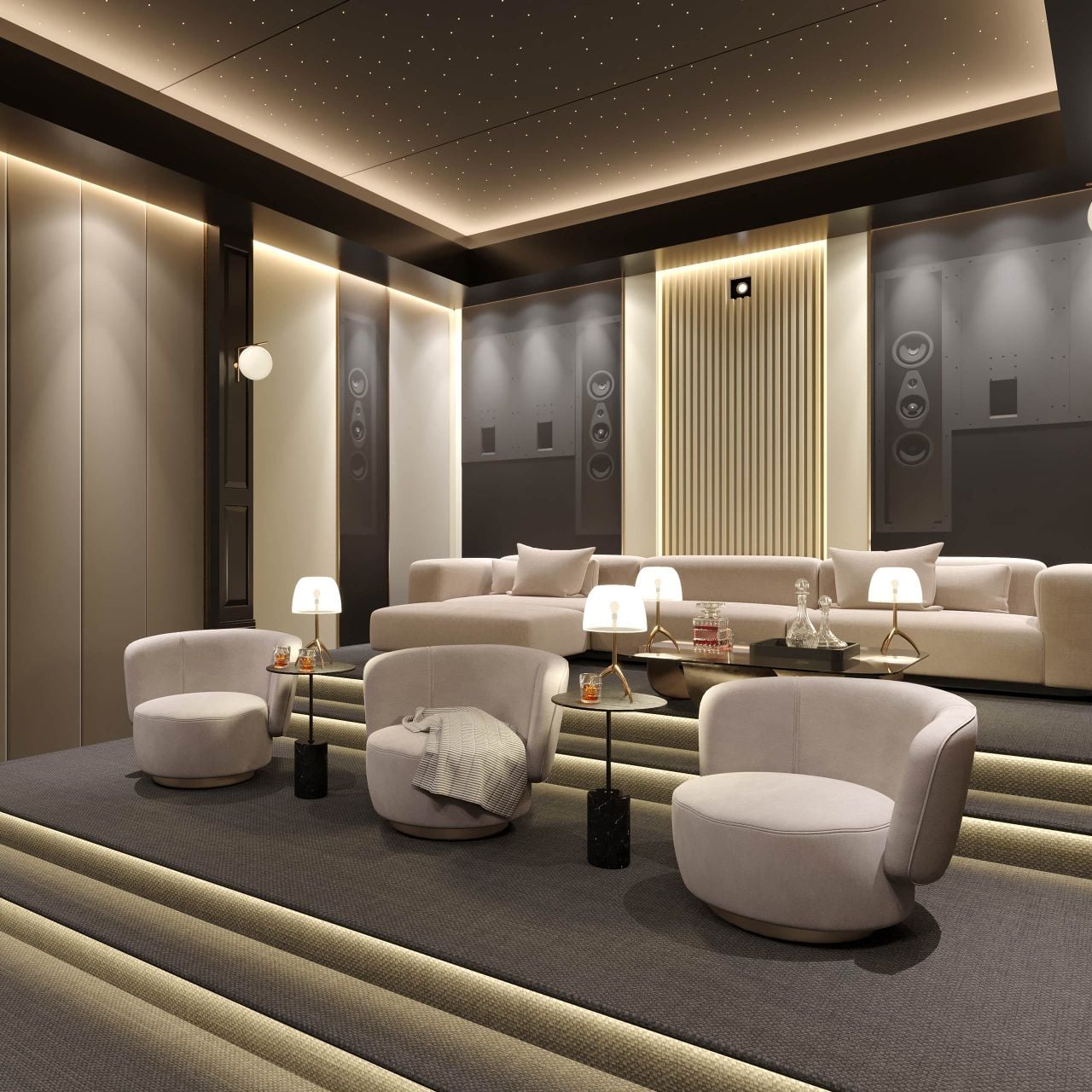

Custom Installation High Fidelity
Arena delivers the acoustic power and dynamics required for high-performance home cinema with versatility to adapt to each unique space.
